10G 1270nm DFB TO-CAN

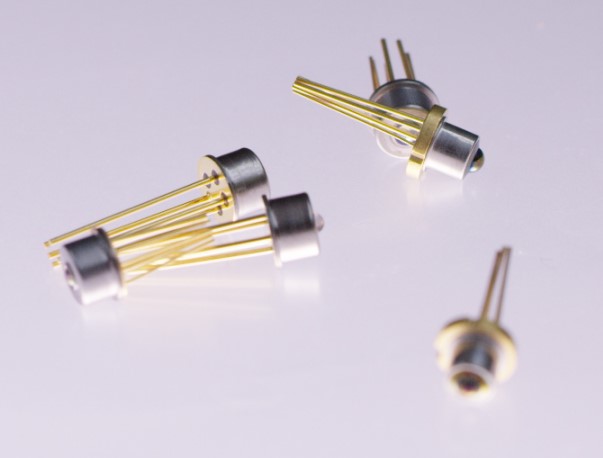

TLD-DDD0I-2B9 is directly modulated 10Gbps 1270nm DFB laser diode devices. The products are available in hermetic TO-56 with Aspheric Iens cap ，and co-packaged InGaAs monitoring photodiode.



关键特征 产品应用

  • 1270nm Wavelength Range

    Data rate up to 10Gbps

    Long Transmission Distance

    High Output Power Efficiency

    Ridge Waveguide Edge Emitting Lase (EEL)

    RoHS Compliant

    Compliant with Telcordia GR-468



  • Ethernet

    Fiber Channel

    GPON
