首页/ 产品中心/ 封装TO-CAN产品/ Laser
封装TO-CAN产品
Laser
2.5G 1310nm FP TO-CAN 2.5G 1270nm DFB TO-CAN 2.5G 1310nm DFB TO-CAN 2.5G 1490nm DFB TO-CAN 10G 1310nm FP TO-CAN 10G 1270nm DFB TO-CAN 10G 1310nm DFB TO-CAN 10G BiDi 1270/1330nm DFB TO-CAN 10G CWDM 1271/1291/1311/1331/1351/1371nm DFB TO-CAN 10G CWDM 1471/1491/1511/1531/1551/1571nm DFB TO-CAN 25G 1310nm EML TO-CAN 25G 1310nm DFB TO-CAN 25G BIDI 1270/1330nm DFB TO-CAN CWDM 25G 1271/1291/1311/1331/1351/1371nm DFB TO-CAN
Detector
2.5G PIN-TIA TO-CAN 2.5G Super TIA PD TO-CAN 10G PIN-TIA TO-CAN 25G PIN-TIA TO-CAN
CWDM 25G 1271/1291/1311/1331/1351/1371nm DFB TO-CAN

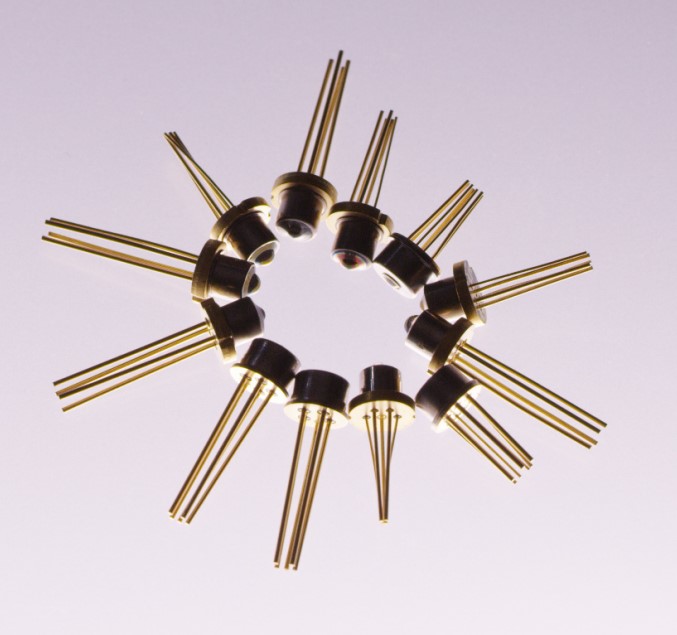

TLD-DEXKI-3D9 is directly modulated 25Gbps 1271/1291/1311/1331/1351/1371nm DFB laser diode devices. The products are available in hermetic TO-56 with Aspheric Iens cap，and co-packaged InGaAs monitoring photodiode.

关键特征 产品应用

  • 1271~1371nm Wavelength Range

    Data rate up to 25Gbps

    High Output Power Efficiency

    Ridge Waveguide Edge Emitting Lase (EEL)

    Extended temperature from -40℃ to 85℃

    RoHS Compliant

    Designed for Telcordia GR-468



  • CWDM

    Fiber Channel

    Optical Ethernet
